A high density polymer electrolyte delivering over 600 watt-hours per kilogram in a lithium-rich battery, is a remarkable achievement. Scientists at Department of Chemical Engineering at Tsinghua University in China have done this, and stunned the battery world. They elevated polymer electrolytes to new levels of promise in the race for next-generation energy storage.
Cracking the Code With High Density Polymer Electrolyte
Electrolytes perform a mission-critical role in batteries. They are the highway along which charge-carrying ions travel between electrodes, and they determine the efficiency. Polymer electrolytes work exceptionally well with lithium-rich manganese-based layered -oxide cathodes.
This arrangement could be one of the most promising high-energy-density and high-safety storage systems, but there is a catch. The design does not work well in practice. The battery degrades rapidly. The cathode does not interface well with the electrolyte either.
The researchers realized that the battery chemistry needed a fundamental rethink. In the end, their solution lay in a high energy density polymer electrolyte, but they had a road to travel to get there. They may not have imagined their prize would be a 600 watt-hour per kilogram battery.
The Breakthrough and How It Happened

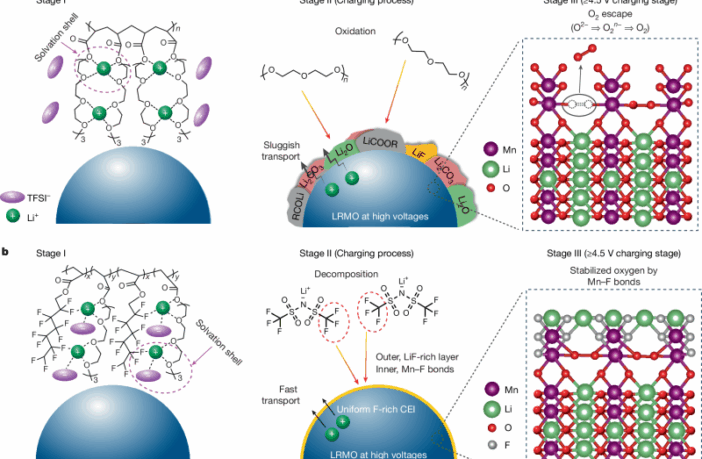

The breakthrough proved to be tailoring the polymer electrolyte’s solvation structure. This is a scientific term for the way molecules dissolved in the electrolyte around charge-carrying ions.
In practical terms, the team from Department of Chemical Engineering at Tsinghua University in China, tailored the solvation structure as follows:
- They altered the solvation structure by integrating organic polymer ‘fluoropolyether backbones’.
- This material combined other elements in the electrolyte, so they formed an anion-rich shell around the ions.
- This anion-rich structure helped form interphases at the cathode and anode, that suppressed parasitic reactions.
This innovation enabled a high density polymer electrolyte, able to support a a 600 watt-hour per kilogram battery that does not degrade rapidly.
